Filter and aggregate network traffic with a single tool,
no matter the type of interface

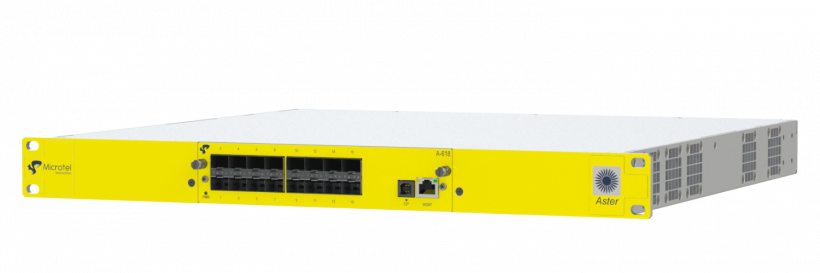

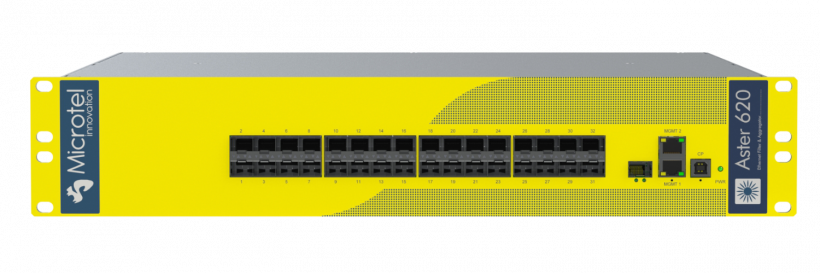

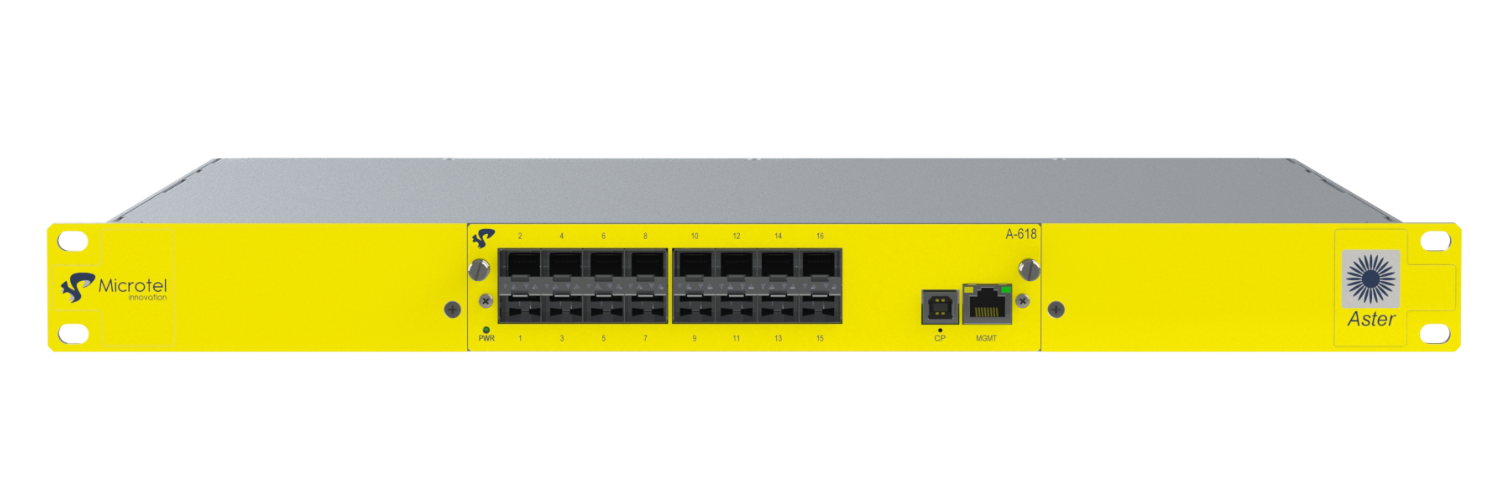

Aster A-618/A-620 at a glance
Key features
- L2-L4 filtering
- Traffic aggregation and replication
- Load balancing
- Great value for money
Product description
Aster A-618/A-620 are Microtel’s packet brokers for 1/10 Gb/s links, providing the capability to filter and aggregate network traffic with a single tool, no matter if 1 Gb/s or 10 Gb/s interfaces are used, and to load balance towards the monitoring tools at different speeds.
Microtel Packet Brokers make monitoring and security tools more effective, by giving them access to a range of data from across the entire network.
Blind spots are reduced, giving tools the visibility they need to identify and tackle performance and security threads.
Previous
Next
Highlights
- Reduce CAPEX as you may use fewer monitoring tools by aggregating the traffic coming from multiple TAPs or SPAN ports
- Feed the monitoring tools with the right data, by filtering the network traffic up to L4 or using UDB filtering capabilities
- Enable service operators to keep using their 1 Gb/s monitoring tools by adapting the speed of 10 Gb/s data links
Request a quote
If you’re interested in this product, just contact us, explain your needs and ask for a personalized quote.
Technical Specifications
| PRODUCT | Aster A-620 | Aster A-618 | |
|---|---|---|---|
| Product image |
|
|
|
| Technical data sheet | Aster A-620 | Aster A-618 | |
| PERFORMANCES | |||
| Switching Capacity | 320 Gb/s | 160 Gb/s | |
| INPUT/OUTPUT PORTS | |||
| Max number of 10Gb/s ports | 32 | 16 | |
| Fiber Type | 32 | 16 | |
| MODULE TYPE | |||
| 10Gb/s SFP+ ports | 32 | 16 | |
| 1 Gb/s SFP ports | 32 | 16 | |
| 1 Gb/s SFP copper ports | 32 | 16 | |
| L2-L4 NETWORK PACKET BROKER | |||
| L2-L4 filtering | |||
| UDB filtering | |||
| Traffic replication | |||
| Traffic aggregation | |||
| Load Balancing | |||
| Source Port Labelling (VLAN tag) | |||
| DEVICE MANAGEMENT | |||
| Web GUI | |||
| Real Time statistics and counter (for each input/output port) | |||
| SNMP alarms | |||
| PROTOCOLS | |||
| – IPV4 | |||
| – SNMPV1 | |||
| – HTTP | |||
| SYSTEM SPECIFICATION | |||
| Chassis | 2U | 1U | |
| AC Redundant power supply | |||
| DC Redundant power supply | |||
