Aster A-630/A-660

Solutions for high-speed links packet brokering

Aster A-630/A-660 at a glance

Key features
Product description

Telecom Operators are now upgrading to high speed 40Gb/s and 100Gb/s links to support the high-bandwidth applications and systems on which customers, business partners, subscribers and Internet of Things (IoT) implementers rely on and expect. NFV adoption and 5G roll out are pushing on the same direction: in this context, Network Visibility is still a must have, to provide the relevant data to monitoring and security tools.

Aster A-630C and A-660C are the Microtel Innovation solutions for high-speed links packet brokering: they host 32 x 40/100 Gb/s interfaces in 1U space (A-630C), and 64 x 40/100 Gb/s interfaces in 2U space (A-660C).

The devices stand out for being best in class solutions thanks to their L2GRE/NVGRE tunnel encapsulation and de-capsulation feature, which allows forwarding data traffic to the vProbes within the NFV Infrastructure and enables the capability of backhauling data to remote tools.

Moreover, they represent a very dense solution for 10 Gb/s and 25 Gb/s packet brokering, being capable to host up to 128 x 10 Gb/s or 128 x 25 Gb/s. In fact, they support breakout cables on the QSFP ports, to individual 4 x 10 Gb/s or 4 x 25 Gb/s interfaces.


Request a quote

If you’re interested in this product, just contact us, explain your needs and ask for a personalized quote.

Technical Specifications
Product aster a-630 ASTER A-660

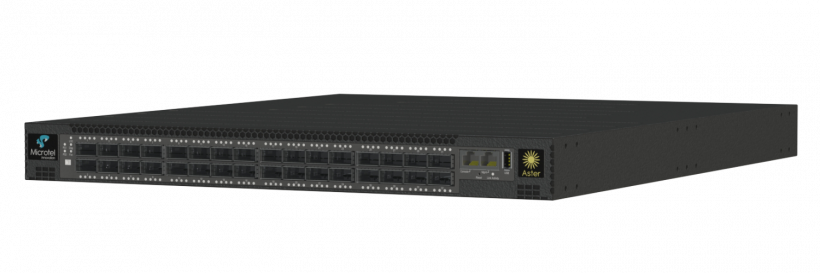

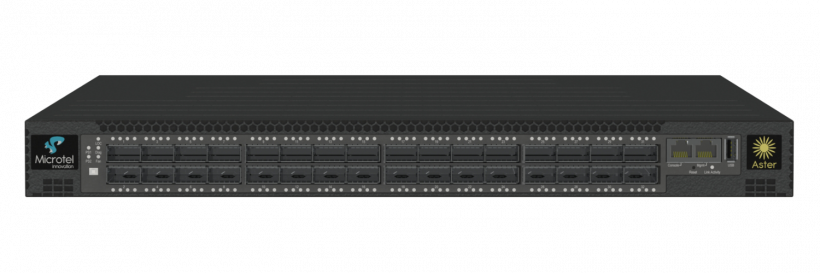

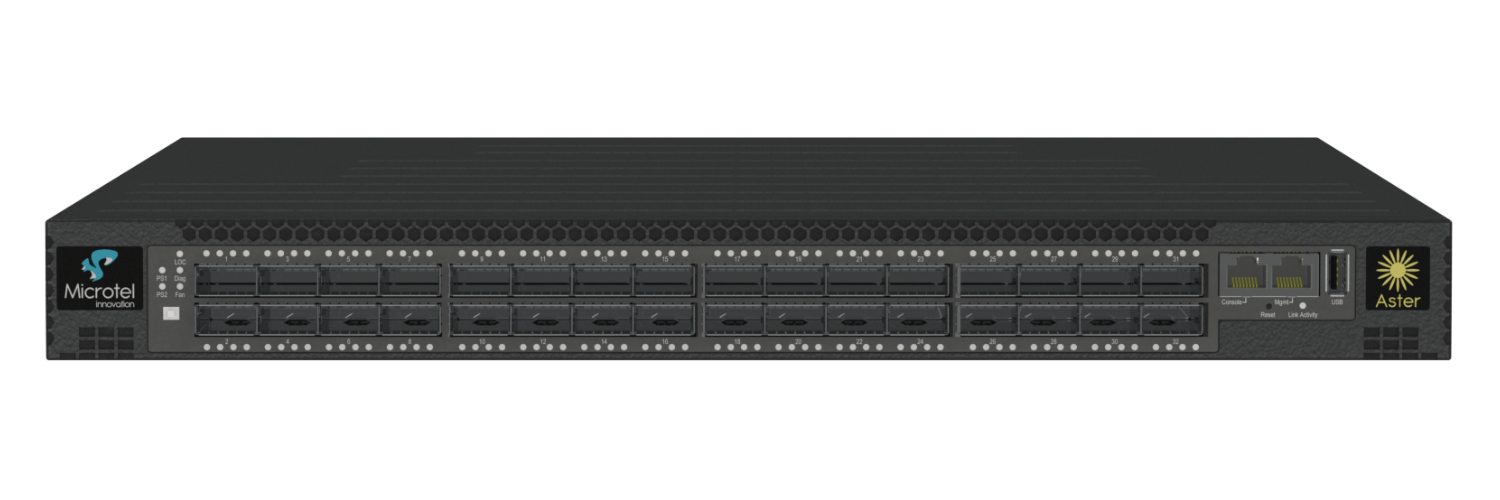

Product image A-630_ant_prosp_DX A-660C-64C_ant_dim_1
Technical data sheet Aster A-630 Aster A-660
Switching Capacity 3.2Tb/s 6.4 Tb/s
Max number of 100Gb/s ports 32 64
Max number of 40Gb/s ports 32 64
Max numbers of 25Gb/s ports 128 64
Max number of 10Gb/s ports 128 64
100Gb/s QSFP28 ports 32 (each one to be used as 1x100Gb/s or 4x25Gb/s) 64 (maximum 16 to be used also as 4x25Gb/s)
40Gb/s QSFP+ ports 32 (each one to be used as 1x40Gb/s or 4x10Gb/s) 64 (maximum 16 to be used also as 4x10Gb/s)
L2-L4 filtering
UDB filtering
Traffic replication
Traffic aggregation
Load Balancing
L2GRE/NVGRE tunnel incapsulation and decapsulation
Real Time statistics and counter (for each input/output port)
SNMP alarms
– IPV4, IPV6
Chassis 1U 2U
AC Redundant power supply
DC Redundant power supply
