Implement secure TAP capabilities
RT-618 Replicas for 1/10 Gb/s networks
Key features
- Suitable for replicating data traffic from few input links to many monitoring tools
- Protected TAP Ports (PTP) function: output port data transmission is automatically disabled in case the cable to the monitoring tool is disconnected
- Up to 8 integrated passive TAP: split ratio from 50/50 to 90/10, single mode and multimode fiber type
- Up to 64x1/10 Gb/s output ports
- Possible to upgrade to full Network Packet Broker capabilities, by means of a software license
Product description

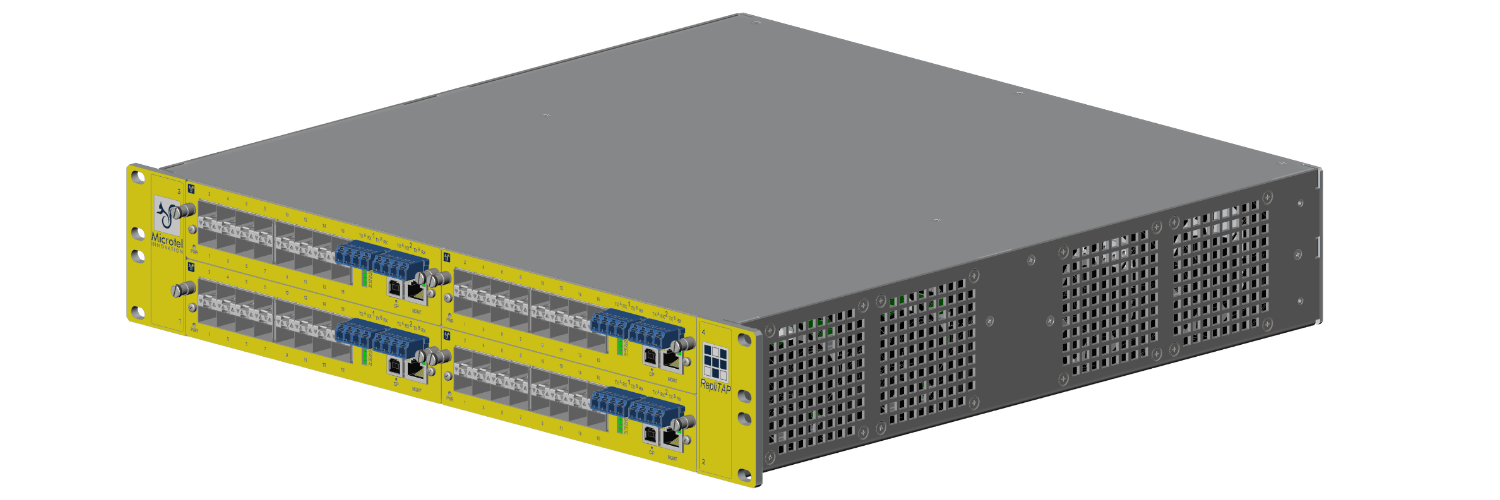

RepliTAP RT-618 is the Microtel Innovation solution for 1/10G Replicator TAPs. It may TAP up to 2 links for each Replicator module, performing 2 or 4 replicas of each tapped link. Two versions are available, 1U with 1 Replicator module and 2U with up to 4 Replicators module. It implements secure TAP capabilities, meaning that the output port data transmission is disabled and an alarm is issued in case the cable to the monitoring tool is disconnected.
Previous
Next
Highlights
- Suitable for replicating data traffic from few input links to many monitoring tools
- Protected TAP Ports (PTP) function: output port data transmission is automatically disabled in case the cable to the monitoring tool is disconnected
- Up to 8 integrated passive TAP: split ratio from 50/50 to 90/10, single mode and multimode fiber type
- Up to 64x1/10 Gb/s output ports
- Possible to upgrade to full Network Packet Broker capabilities, by means of a software license
Request a quote
If you’re interested in this product, just contact us, explain your needs and ask for a personalized quote.
Technical Specifications
| Product | RT-618 1U | RT-618 2U |
|---|---|---|
| Product image |
|
|
| Technical data sheet | RT-618 | RT-618 |
| INPUT/OUTPUT PORT | ||
| Number of Input/Output Module | 1 | 4 |
| Number of integrated passive Optical input TAP per module | 2 | 2 |
| Max number of integrated passive Optical TAP | 2 | 8 |
| Input Speed | 1/10 Gb/s | 1/10 Gb/s |
| Number of 1/10Gb/s output ports per module | 16 | 16 |
| Max number of 1/10Gb/s output ports | 16 | 64 |
| Output Speed | 1/10 Gb/s | 1/10 Gb/s |
| Passive Optical TAP | ||
| Fiber Type | Singlemode 9/125μm Operating wavelenght: 1310nm and 1550nm Multimode 50/125μm and 62,5/125μm Operating wavelenght: 850nm | Singlemode 9/125μm Operating wavelenght: 1310nm and 1550nm Multimode 50/125μm and 62,5/125μm Operating wavelenght: 850nm |
| Split Ratio | 50/50, 60/40, 70/30, 80/20, 90/10 | 50/50, 60/40, 70/30, 80/20, 90/10 |
| NETWORK PACKET BROKER functionalities | ||
| Protecte TAP Port (PTP) function | ||
| Traffic replication | ||
| L2-L4 filtering | yes, need additional SW licence | yes, need additional SW licence |
| UDB filtering | yes, need additional SW licence | yes, need additional SW licence |
| Traffic aggregation | yes, need additional SW licence | yes, need additional SW licence |
| Load Balancing | yes, need additional SW licence | yes, need additional SW licence |
| VLAN tagging | yes, need additional SW licence | yes, need additional SW licence |
| DEVICE MANAGEMENT | ||
| Web GUI | ||
| Real Time statistics and counter (for each input/output port) | ||
| SNMP alarms | ||
| SYSTEM SPECIFICATION | ||
| Chassis | 1 U | 2 U |
| AC Redundant power supply | ||
| DC Redundant power supply | ||
