Regenerator TAPs

What do you need?

Secure network access for data Replication and Aggregation

There are many situation where it is convenient to have the network TAPs combined with Network Packet Broker functionalities in one only box.

This solution is very compact and convenient, for example when there are a high quantity of low traffic links to be monitored, and few tools to be fed with such traffic, or, the other way around, there are few links which data must be replicated to several tools.

Also more important, there can be the case of critical links, where the Operator needs 100% assurance that unauthorized tools or people cannot get access to the data passing through those links.

How Microtel Innovation can help

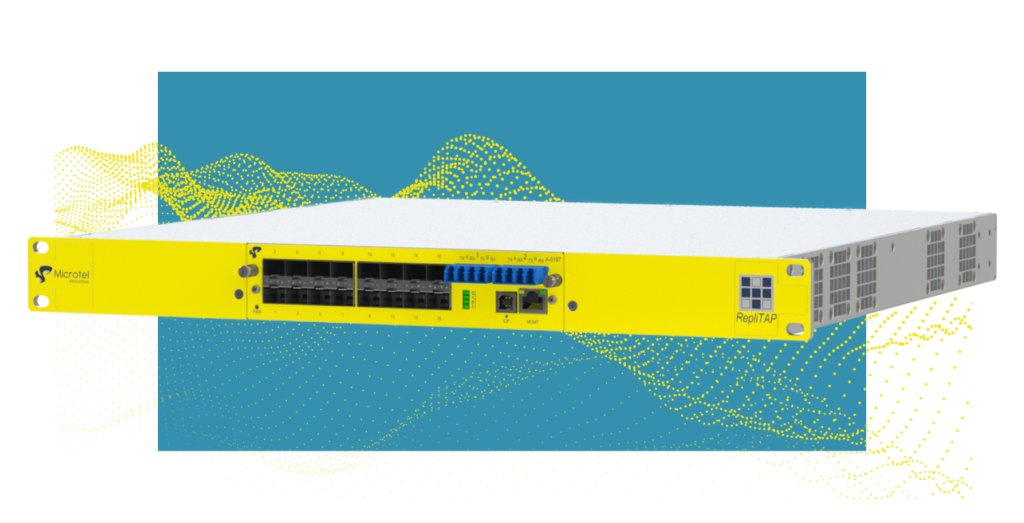

Microtel Innovation Replicator TAPs

Microtel Innovation provides Network Packet Brokers with integrated TAPs for a secure and controlled access to Network data traffic. They implement secure TAP capabilities, meaning that the output port data transmission is disabled and an alarm is issued when the cable which connects this specific output port and the monitoring tool is disconnected. In this way there is no possibility that a not authorized tool may be fed with tapped network data.

Two different solutions are available:

  • Link Replication: the link is tapped, and the data are replicated to one or more output ports, which are connected to the monitoring tools.
  • Link Aggregation: the NPB can tap, filter and aggregate network traffic in a single box, and load balance it towards the monitoring tools at wire speed.

Choose the right product for your needs

Compare Microtel Innovation Regenerator TAPs. Download the technical datasheet or visit the dedicated page.

Product RT-604 RT-618 RT-618 2U

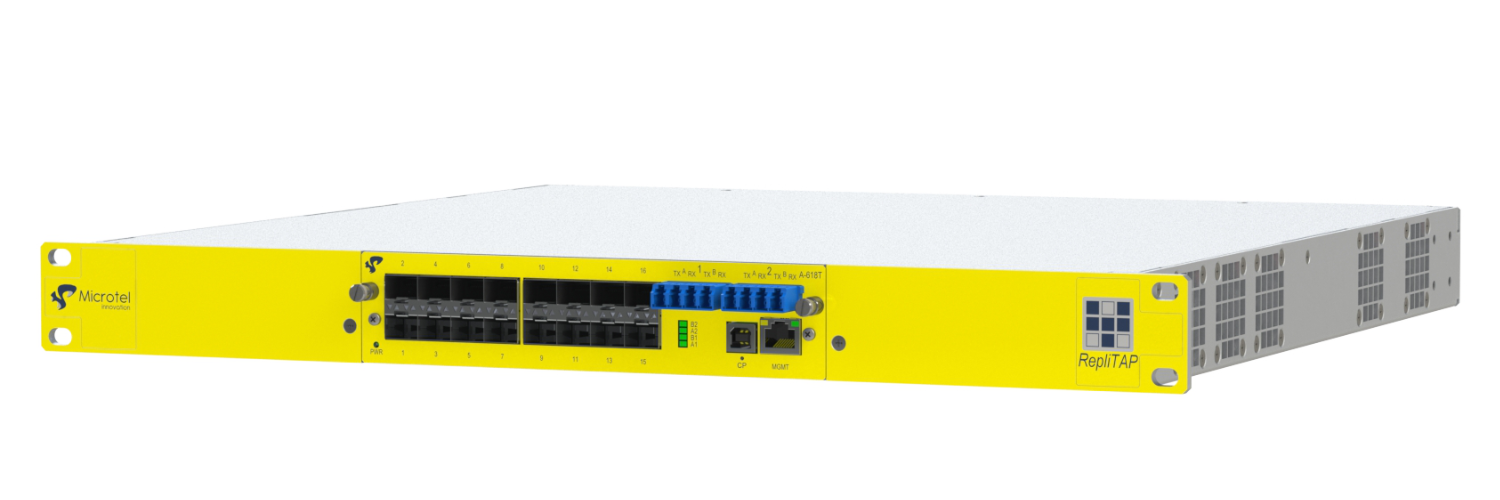

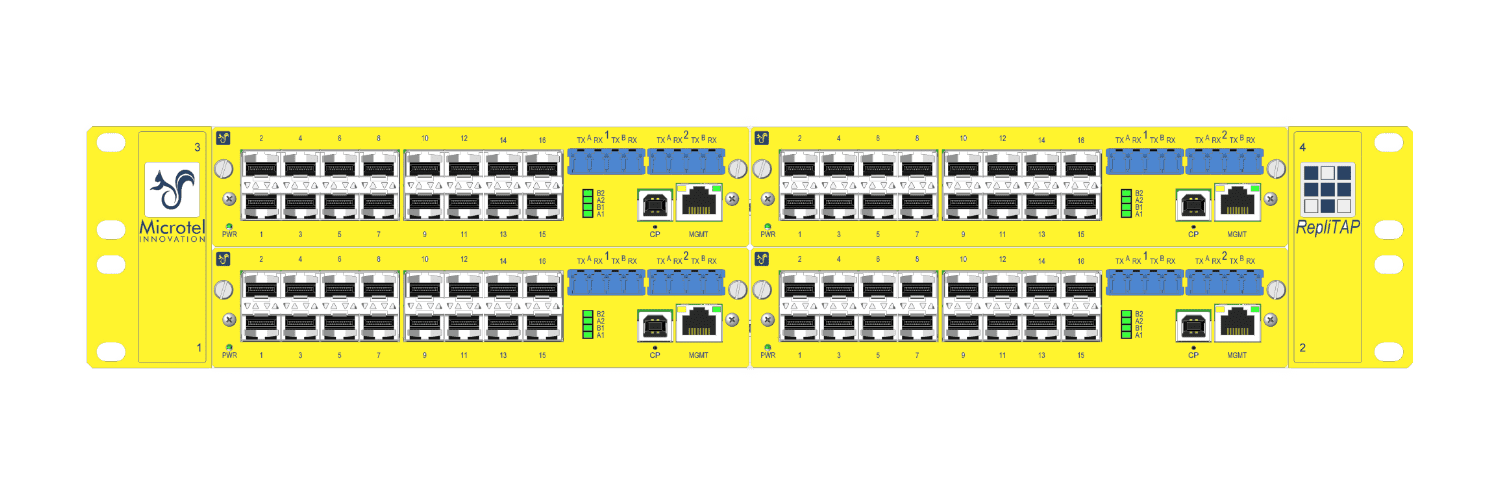

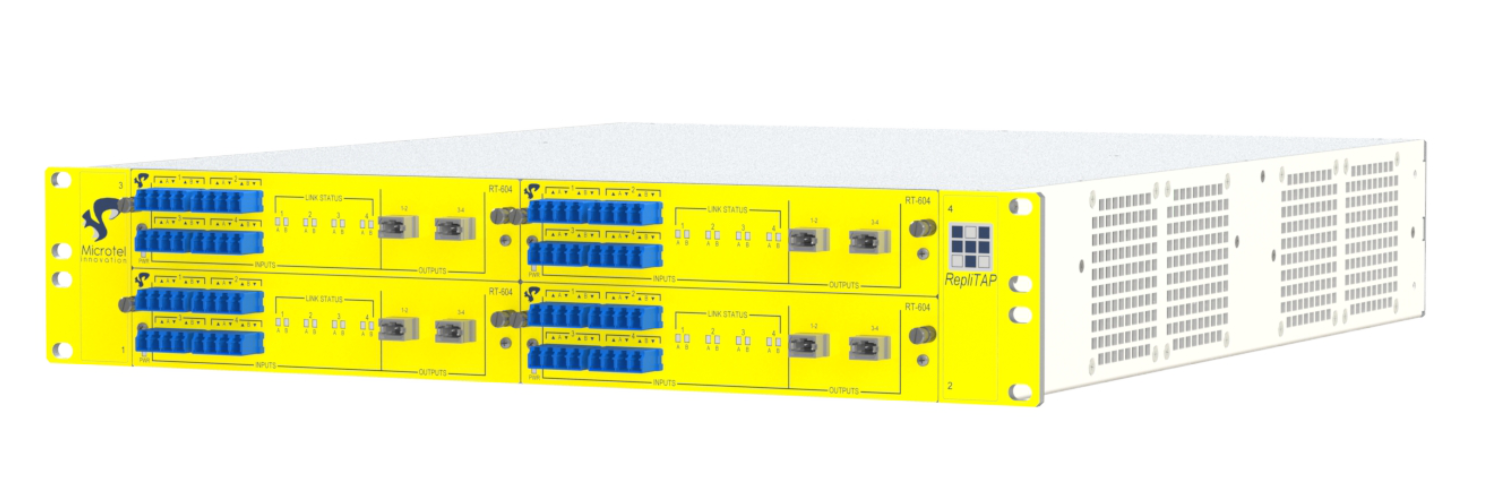

Product image RT-604_ant_rendering_DX R-618_ant_prosp_DX RT-618-10G_LC_rack_2U_ant-VL
Technical data sheet RT-604 RT-618 RT-618 2U
Max number of integrated passive Optical TAP 16 2 8
Max number of 1/10Gb/s output ports 32 16 64
Input/Output Speed 1/10 Gb/s 1/10 Gb/s 1/10 Gb/s
Protecte TAP Port (PTP) function
Main Use Case Traffic aggregation from many input links towards monitoring tools Traffic replication from few input links to many monitoring tools Traffic replication from few input links to many monitoring tools
NPB functionalities yes, need additional SW licence yes, need additional SW licence
Passive Optical TAP
Fiber type Singlemode and Multimode Singlemode and Multimode Singlemode and Multimode
Split Ratio 50/50, 60/40, 70/30, 80/20, 90/10 50/50, 60/40, 70/30, 80/20, 90/10 50/50, 60/40, 70/30, 80/20, 90/10
System Specifications
Chassis 2U 1U 2U
AC Redundant power supply
AC Redundant power supply
