E-313B/E-313B-I

Monitor the TDM STM-1 infrastructure using IP probes, save money and optimize the whole monitoring system

E-313B/E-313B-I at a glance

Key features
Product description

Telecom Operators are migrating from Legacy network infrastructures to more scalable, flexible and efficient Internet protocol (IP) networks, to support the new IP services. As this migration is not so fast and easy, due to technical and budget constraints, operators are currently handling a mixed architecture TDM & IP, both for links and monitoring probes.

Microtel’s Ethernizer enables to monitor the whole infrastructure using IP probes, saving money in future investment and optimizing the whole monitoring system.

Highlights

Request a quote

If you’re interested in this product, just contact us, explain your needs and ask for a personalized quote.

Technical Specifications
Product E-313B E-313B-I

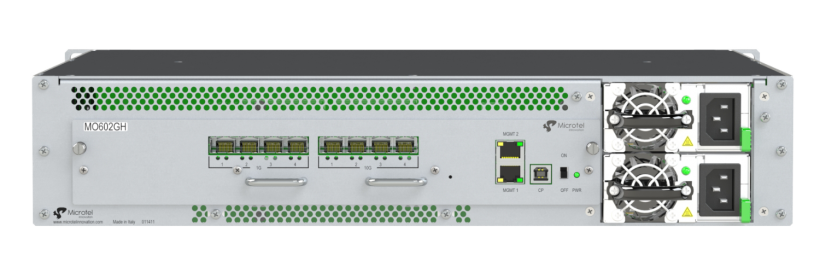

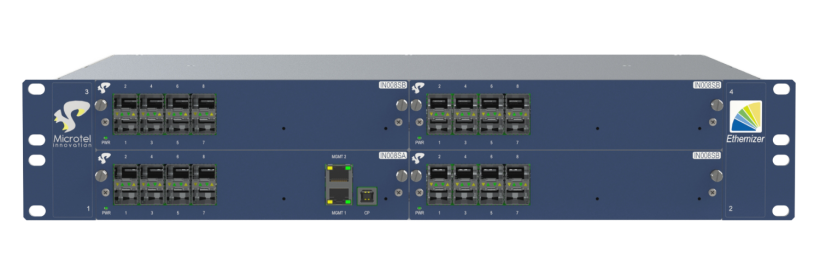

Product image E-313B_ant_prosp_DX E-313B_ant_prosp_DX
Technical data sheet E-313B E-313B-I
INPUT/OUTPUT INTERFACES
TDM interfaces STM-1(VC12- HSL, LSL) STM-1(VC12 – LSL)
Max number of links 4 4
Output ports 2x1Gb/s 2x1Gb/s
Signalling Convertion
SS7 Signalling (MTP-2) to SIGTRAN (M2UA or M3UA) /
E1 ISDN PRI (D-CHANNEL Signalling) TO SIGTRAN (IUA) /
FUNCTIONALITIES
RTP encapsulation of voice data streams
L1-L2 alarms support
L2 GRE encapsulation
SYSTEM SPECIFICATION
Chassis 1U 1U
AC Redundant power supply
AC Redundant power supply
Product E-313SA E-613SA E-313SA-I

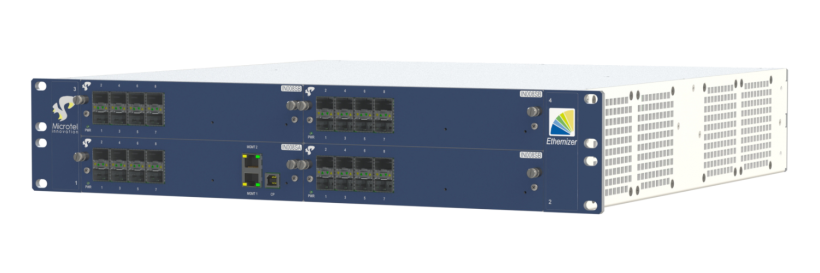

Product image E-313B_ant_prosp_DX E-613SA_ant_prosp_DX E-313B_ant_prosp_DX
Technical data sheet E-3131SA E-613SA E-313SA-I
INPUT/OUTPUT INTERFACES
TDM interfaces E1/T1 (HSL, LSL) E1/T1 (HSL, LSL) E1/T1 (LSL)
Max number of links 32 128 32
Output ports 2x1 Gb/s 2x1 Gb/s, 2x10 Gb/s 2x1 Gb/s
Signalling Convertion
SS7 Signalling (MTP-2) to SIGTRAN (M2UA or M3UA) /
SS7 Signalling (ATM) to SIGTRAN (M2UA or M3UA) /
E1 ISDN PRI (D-CHANNEL Signalling) TO SIGTRAN (IUA) / /
FUNCTIONALITIES
SS7 Signalling (MTP-2) to SIGTRAN (M2UA or M3UA)
RTP encapsulation of voice data streams​
L1-L2 alarms support​
L2 GRE encapsulation​
SYSTEM SPECIFICATION
Chassis 1U 2U 1U
AC Redundant power supply
DC Redundant power supply
