SS7 to SIGTRAN Signalling Converter

What do you need?

Monitor old TDM nodes with an IP probe

Today, mixed architectures TDM and IP coexist in telecommunication world, becoming a strong barrier to Service Providers who want, or need, to monitor TDM links.

In fact, Operators have to monitor the legacy networks, at least in the critical points and, on the other side, they are reluctant to invest in TDM tools, which are gradually phasing out, preferring to monitor the whole infrastructure using IP monitoring tools.

Microtel Innovation developed the appropriate solution to answer this challenge: the Ethernizer family.

How Microtel Innovation can help

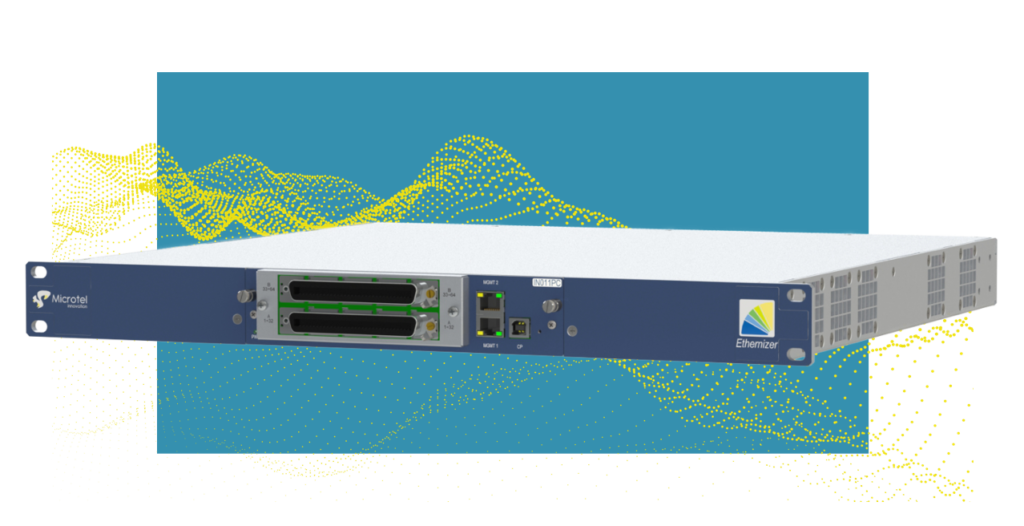

Microtel Innovation Ethernizers

Microtel’s Ethernizer family products are the solution to this challenge, enabling operators to manage a mixed infrastructure with the same tools, bringing all-locations and all layers visible to the Centralized Monitoring System through the IP Probes, no matter if IP or TDM technology is used.

Moreover it doesn’t matter if TDM traffic runs far from the IP probe, since Ethernizers allow to backhaul traffic thanks to the L2GRE/NVGRE tunnel encapsulation functionality.

In more details Microtel Innovation Ethernizers support:

  • Convertion of SS7 Signalling (MTP-2 or ATM) to SIGTRAN (M2UA or M3UA)
  • Convertion of ISDN E1/PRI (LAPD-Channel D) to SIGTRAN (IUA)

Choose the right product for your needs

Compare Microtel Innovation SS7 to SIGTRAN Signalling Converters. Download the technical datasheet or visit the dedicated page.

Product E-313SA/E-313SA-I/E-613SA E-313B/E-313B-I/E-613B

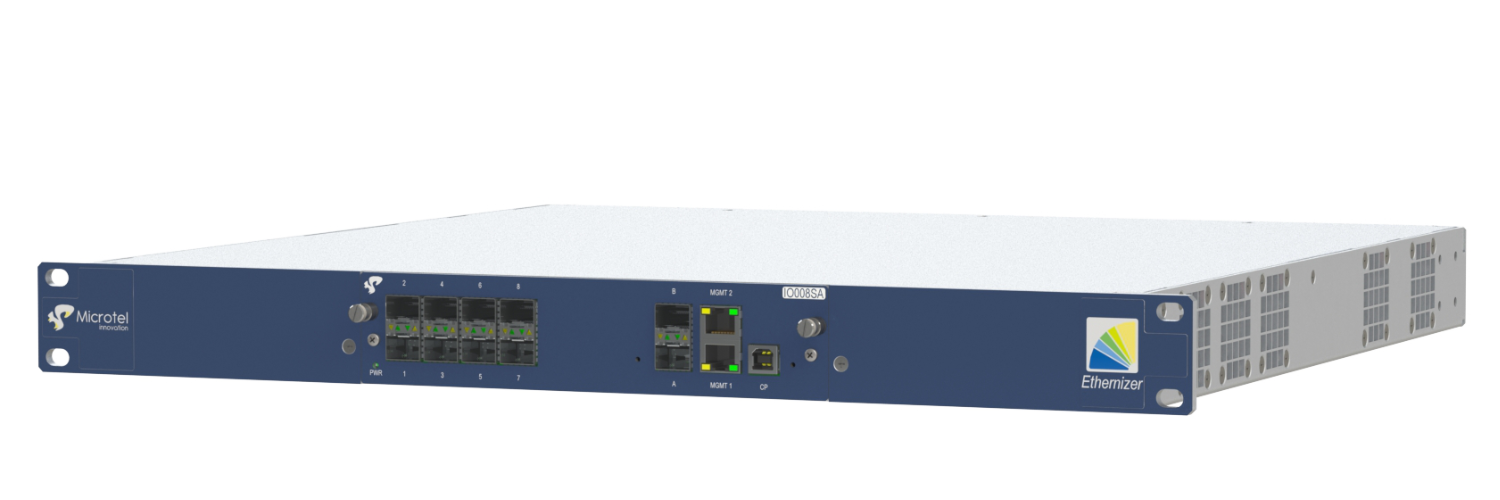

Product image E-313SA_ant_prosp_DX E-313B_ant_prosp_DX
Technical data sheet E-313SA/E-313SA-I/E-613SA E-313B/E-313B-I/E-613B
TDM interfaces E1/T1 (HSL, LSL) STM-1(VC12- HSL, LSL)
Max number of links 32 or 128 4 or 16
Output ports 2x1 Gb/s, 2x10 Gb/s 2x1 Gb/s, 2x10 Gb/s
Signalling Convertion
SS7 Signalling (MTP-2) to SIGTRAN (M2UA or M3UA)
SS7 Signalling (ATM) to SIGTRAN (M2UA or M3UA) /
Chassis 1U, 2U 1U, 2U
AC Redundant power supply
DC Redundant power supply
